Question 167Asked in DSSSB TGT Computer Science, 7 Feb 2024, Shift 2 (12:30 PM)

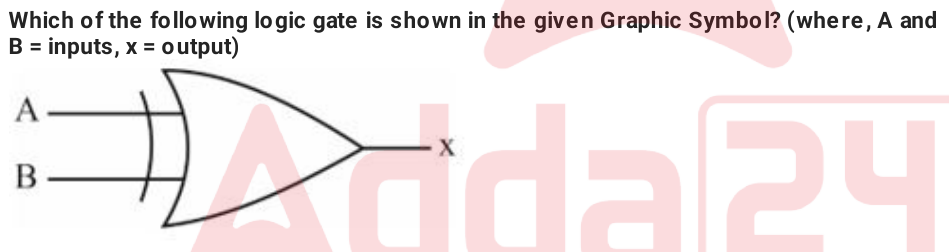

Which of the following logic gate is shown in the given Graphic Symbol? (where, A and B = inputs, x = output)

Which of the following logic gate is shown in the given Graphic Symbol? (where, A and B = inputs, x = output)
  1. AOR gate
  2. BNAND gate
  3. CNOR gate
  4. DExclusive – OR (XOR) gate
Show answerHide answer

Correct answer: (D) Exclusive – OR (XOR) gate

Explanation

The gate shown has an extra curved line at the input side of the OR shape, which is the symbol for the Exclusive-OR (XOR) gate.

From DSSSB TGT Computer Science PYQ, 7 Feb 2024, Shift 2 (12:30 PM)

This is question 167 of DSSSB TGT Computer Science PYQ, 7 Feb 2024, Shift 2 (12:30 PM). See all questions of this paper with answers, or attempt the paper as a timed online test to get your score and all-India rank.
